Wayne's World LCD game

Wayne's World used a Sharp SM-510 MCU (die ID ME7)

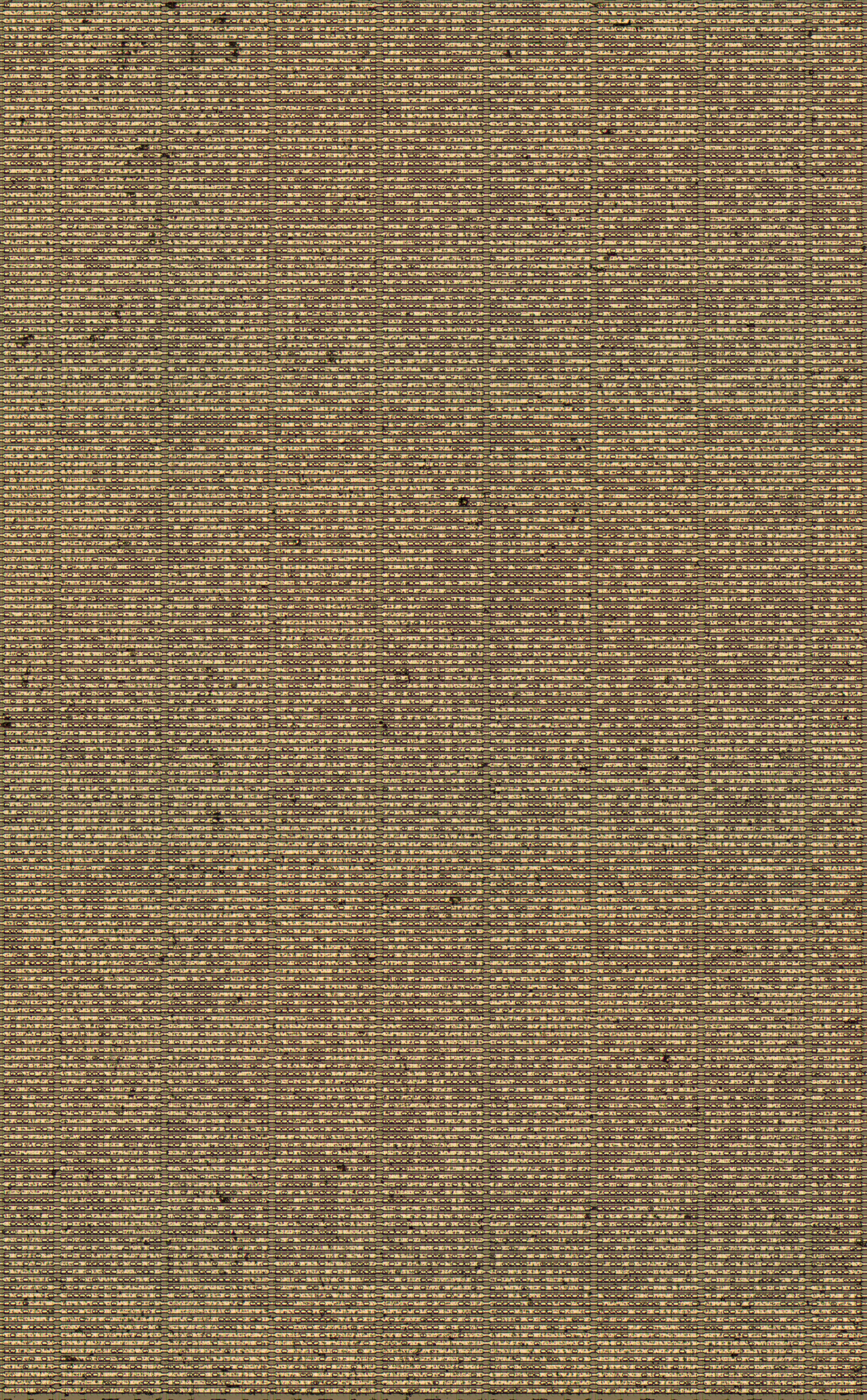

ROM array

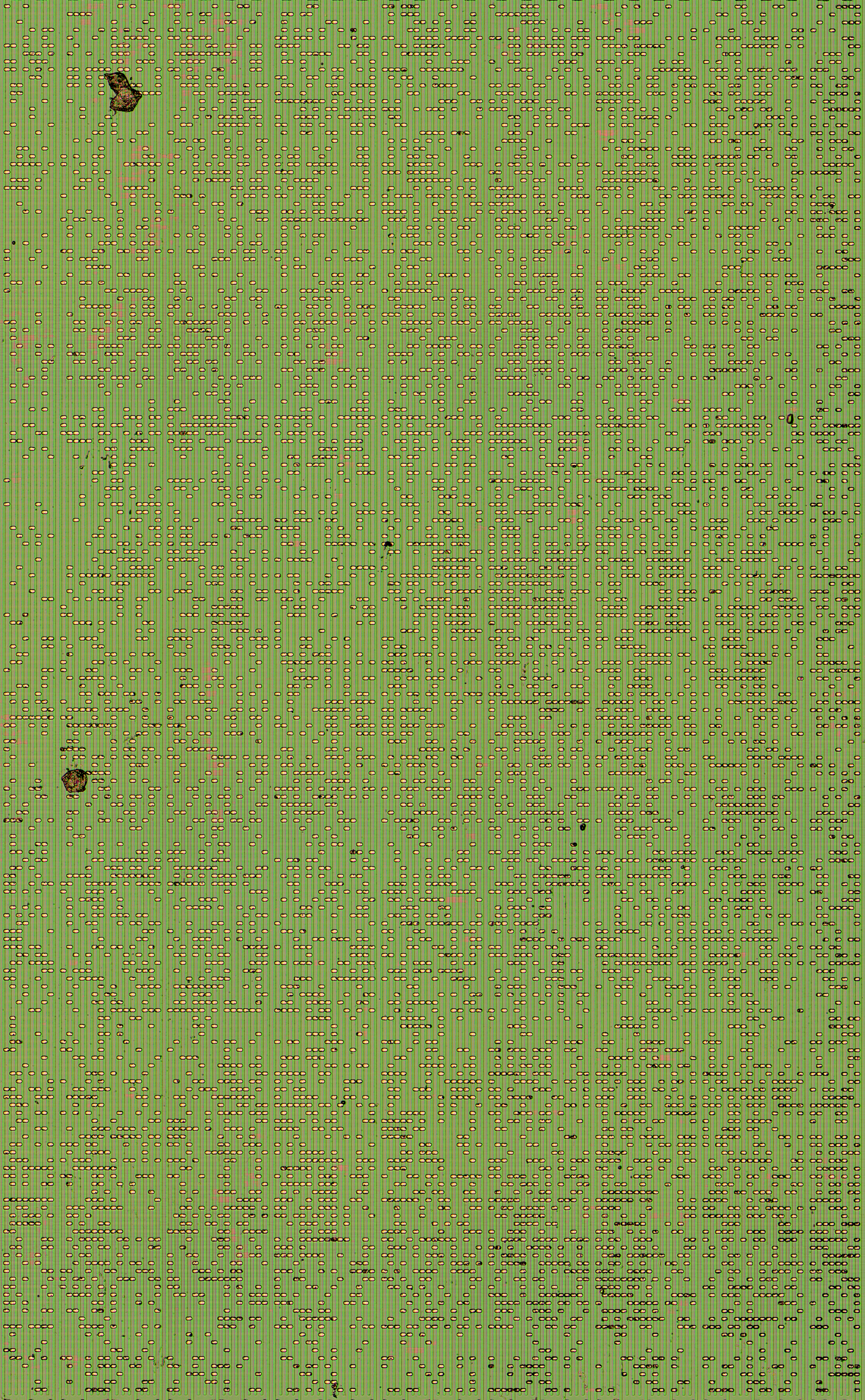

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
       K1           K2         K3          K4       Beta       BA
S1     --           --         Up          --        --        --
S2     --           R          L           --        --        --
S3     --           D          --          --        --        --
S4     --        Hockey R      --          --        --        --
S5   Shoot       Hockey L      --          --        --        --
S6   Pause          --         --          --        --        --
GND    --           --         --          On        --        --
VDD    --           --         --          --       Off      Sound
