NEC uCOM4 ROM bits

Fabulous Fred

Mego handheld LED game.

hardware description and pinout

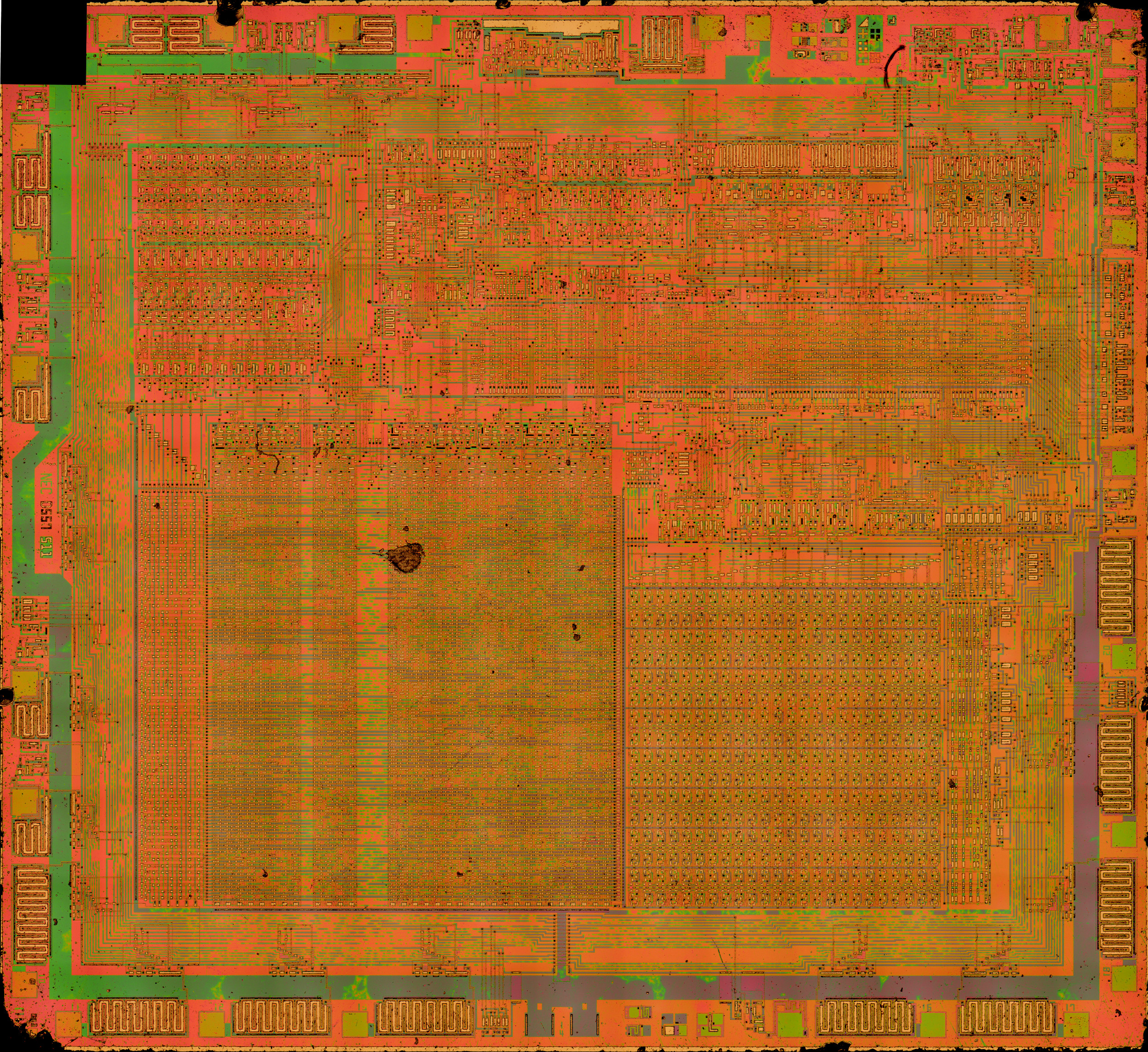

full die shot

full die shot giant image

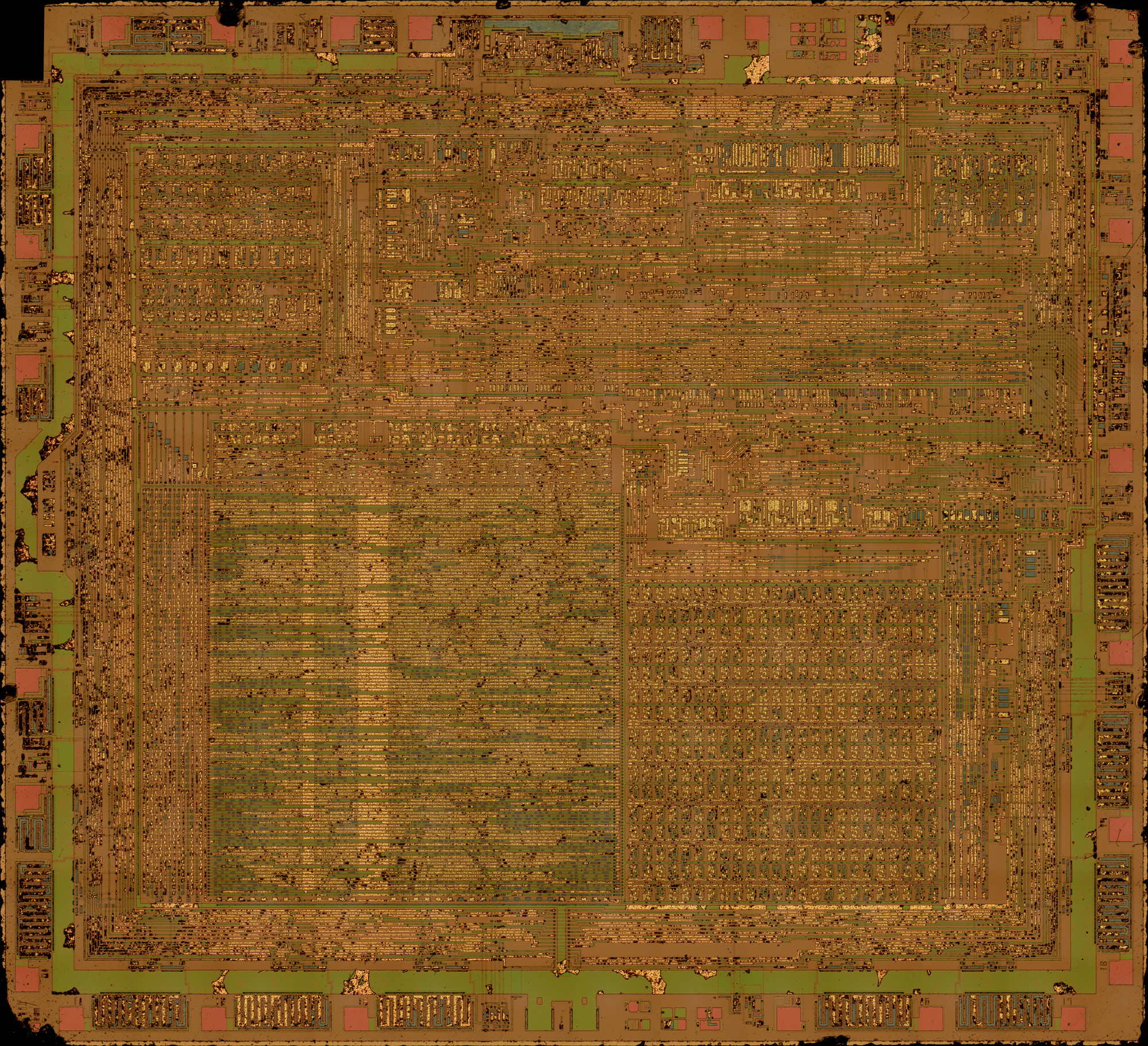

full die shot after top metal removed

full die shot after top metal removed giant image

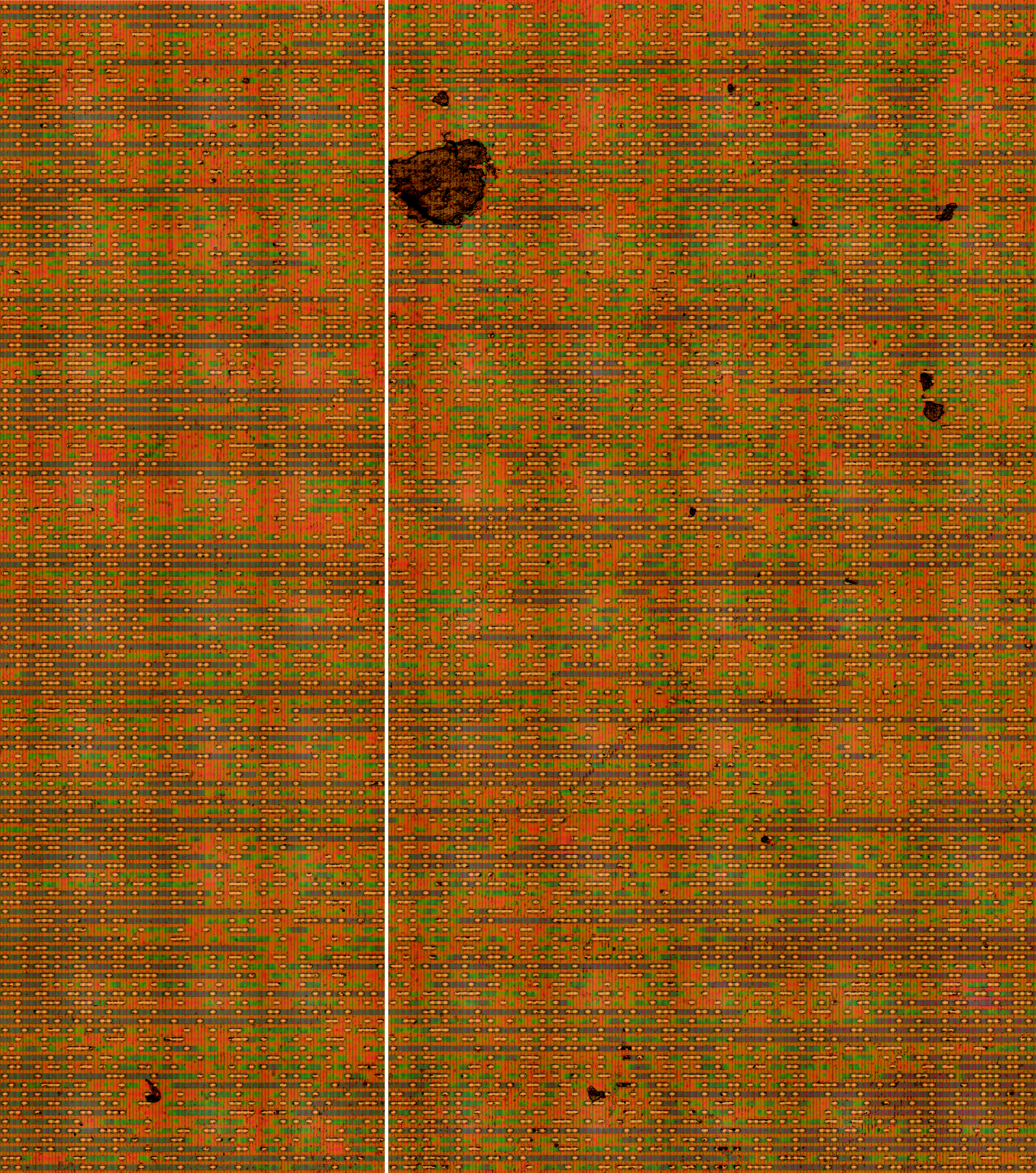

ROM array with top metal layer removed

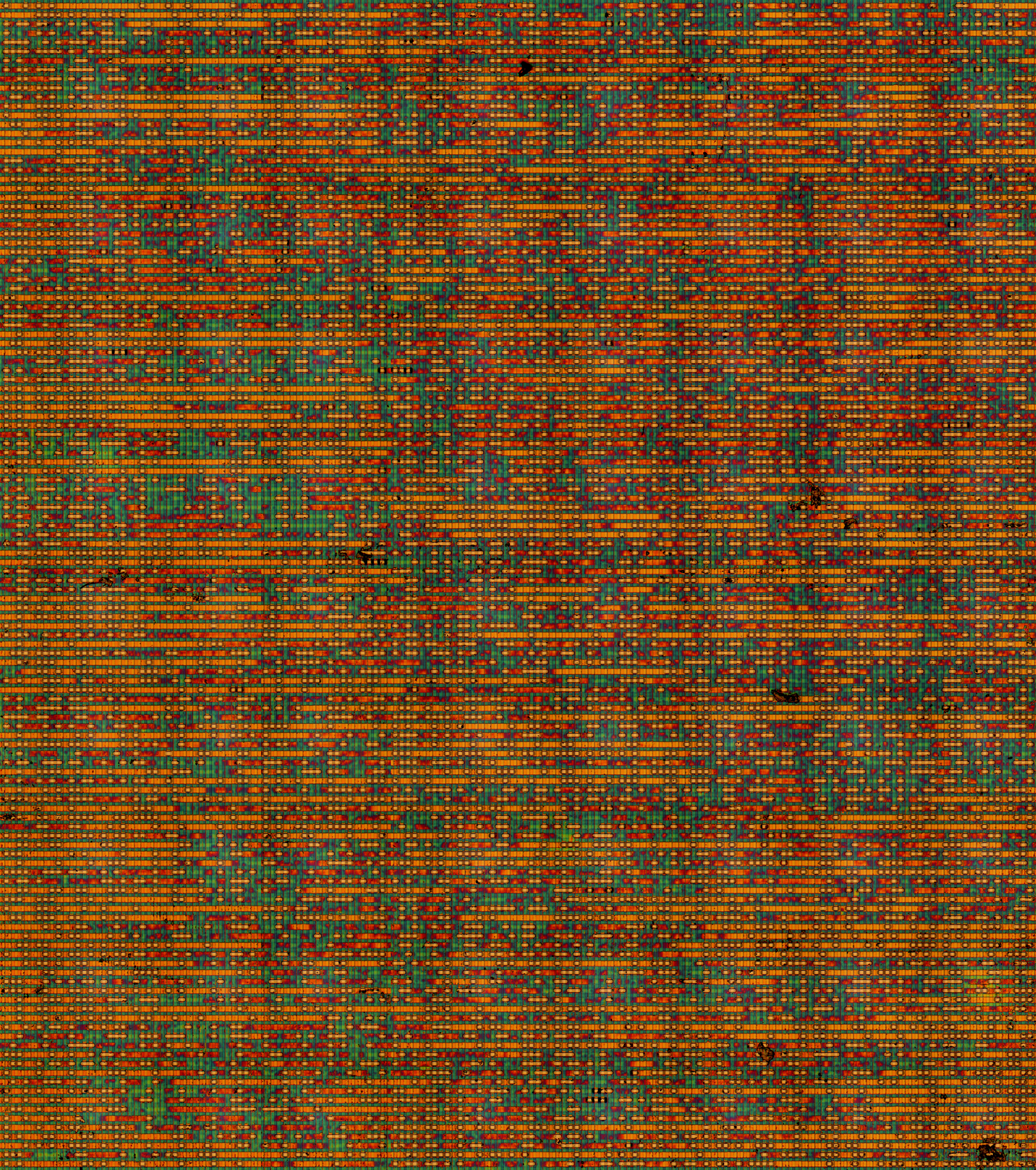

ROM array with top metal layer removed #2

raw ROM dump

ROM dump

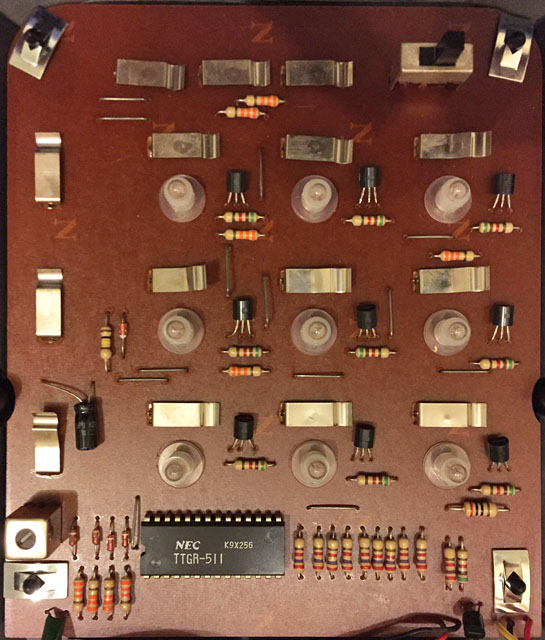

PCB Front

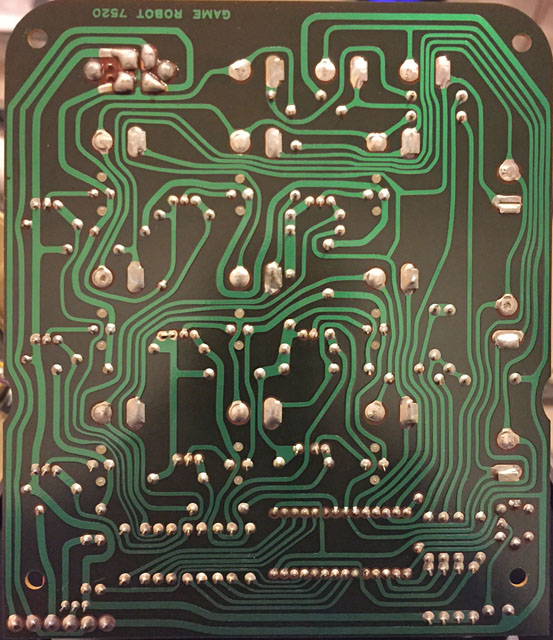

PCB Back

Computer Gin

Mattel handheld LCD game.

die shots

ROM array with top metal

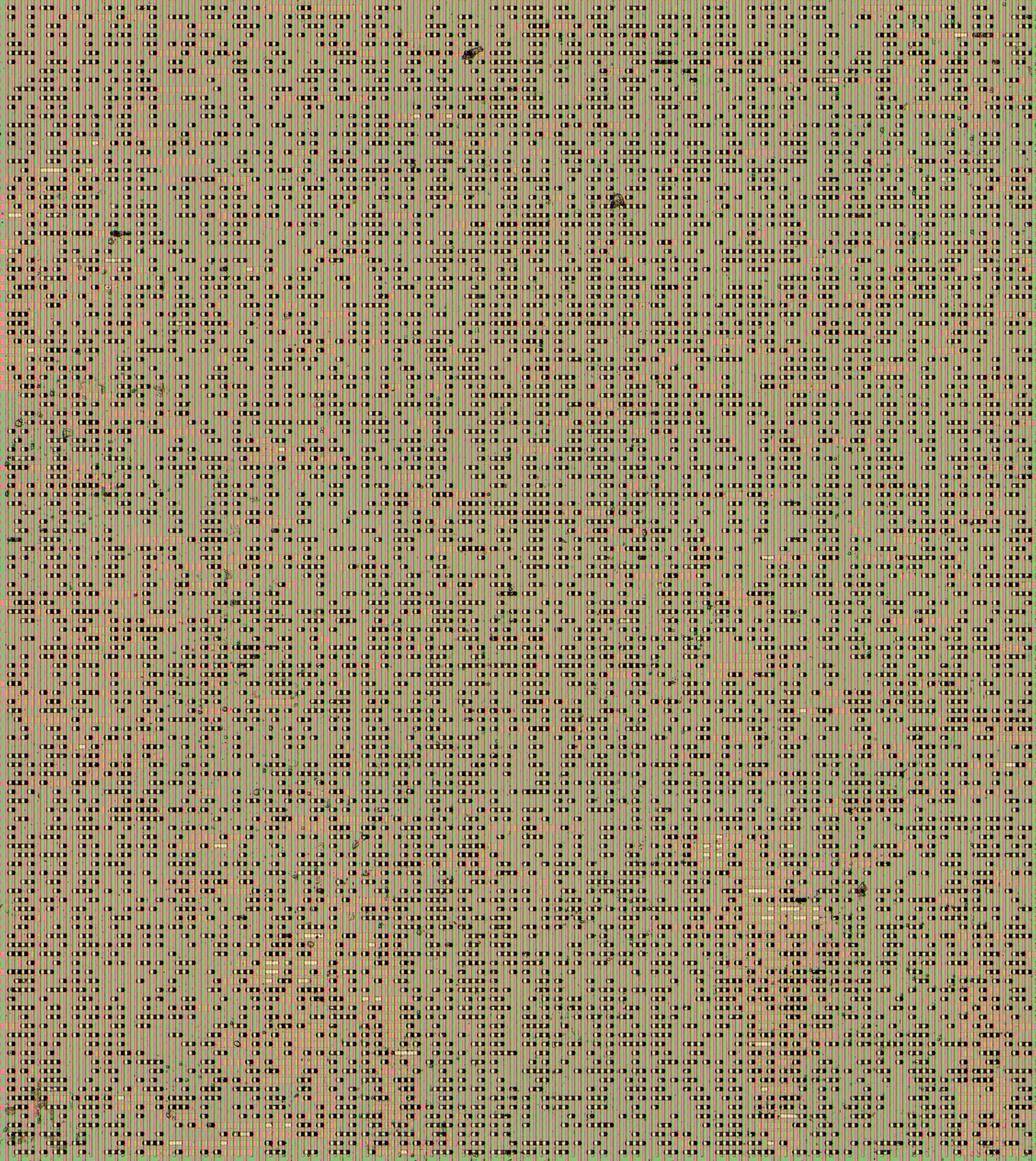

ROM array with top metal layer removed

raw ROM dump

ROM dump
