Gauntlet LCD game

Gauntlet used a Sharp SM-510 MCU (die ID 583)

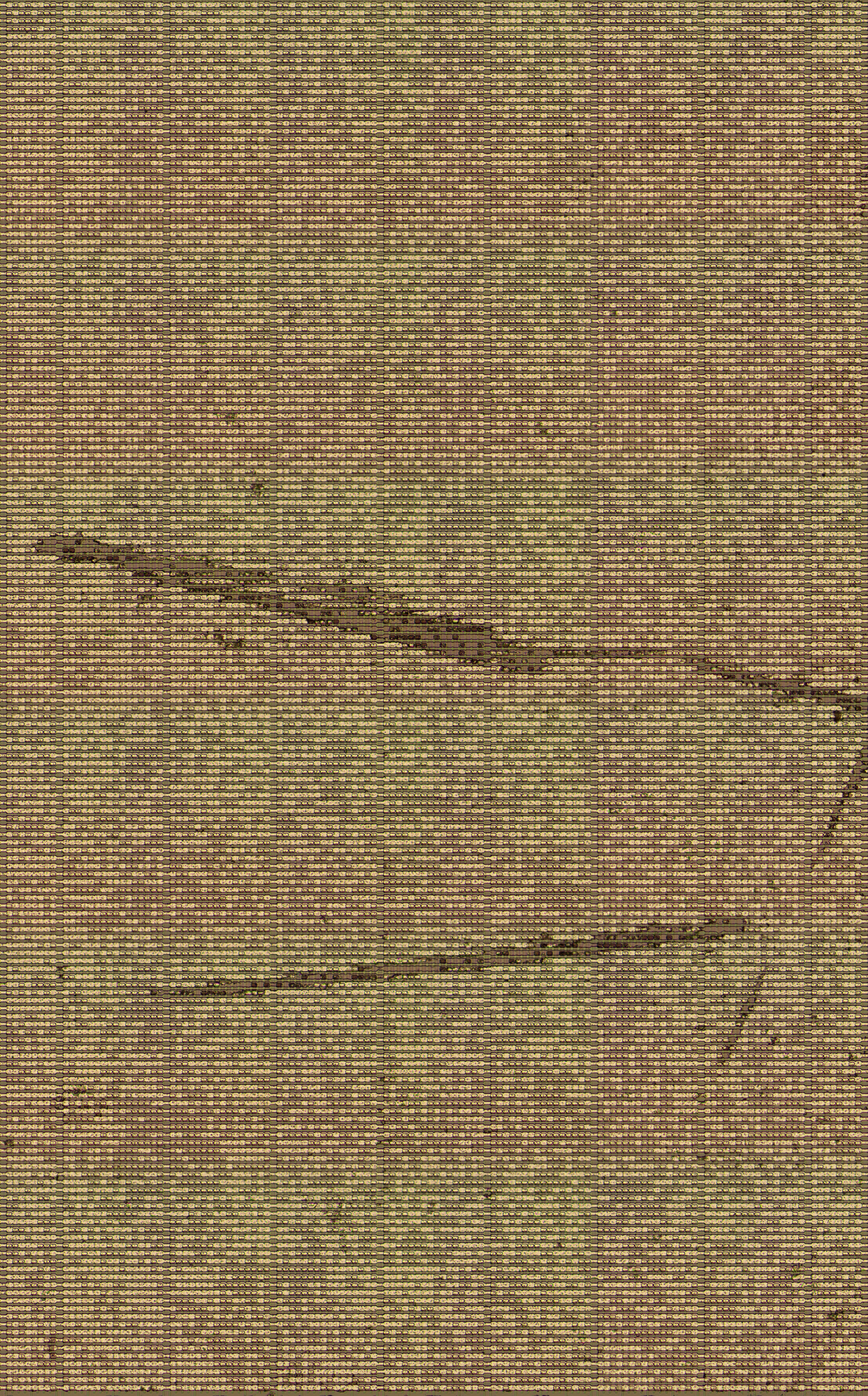

ROM array

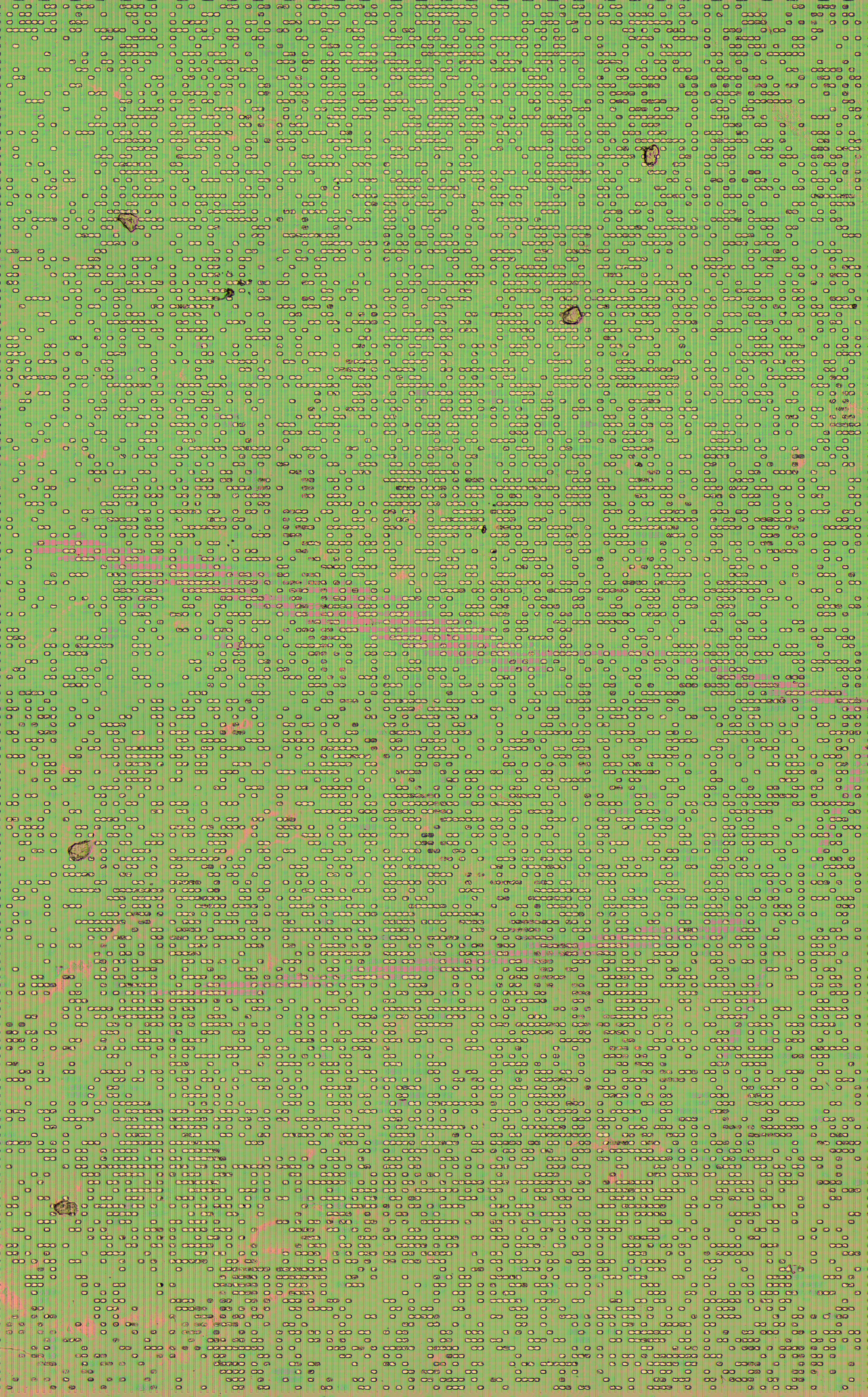

ROM array with top metal removed

raw ROM dump

ROM dump


Buttons:
        K1         K2          K3        K4       Beta       BA
S1     Pick        --          Up        --        --        --
S2      --       Right        Left       --        --        --
S3      --        Down         --        --        --        --
S4      --        Bomb         --        --        --        --
S5    Attack      Key          --        --        --        --
S6    Select       --          --        --        --        --
GND     --         --          --        On        --        --
VDD     --         --          --        --       Off      Sound
