Garfield LCD game

Garfield used a Sharp SM-511 MCU (die ID N62)

ROM array

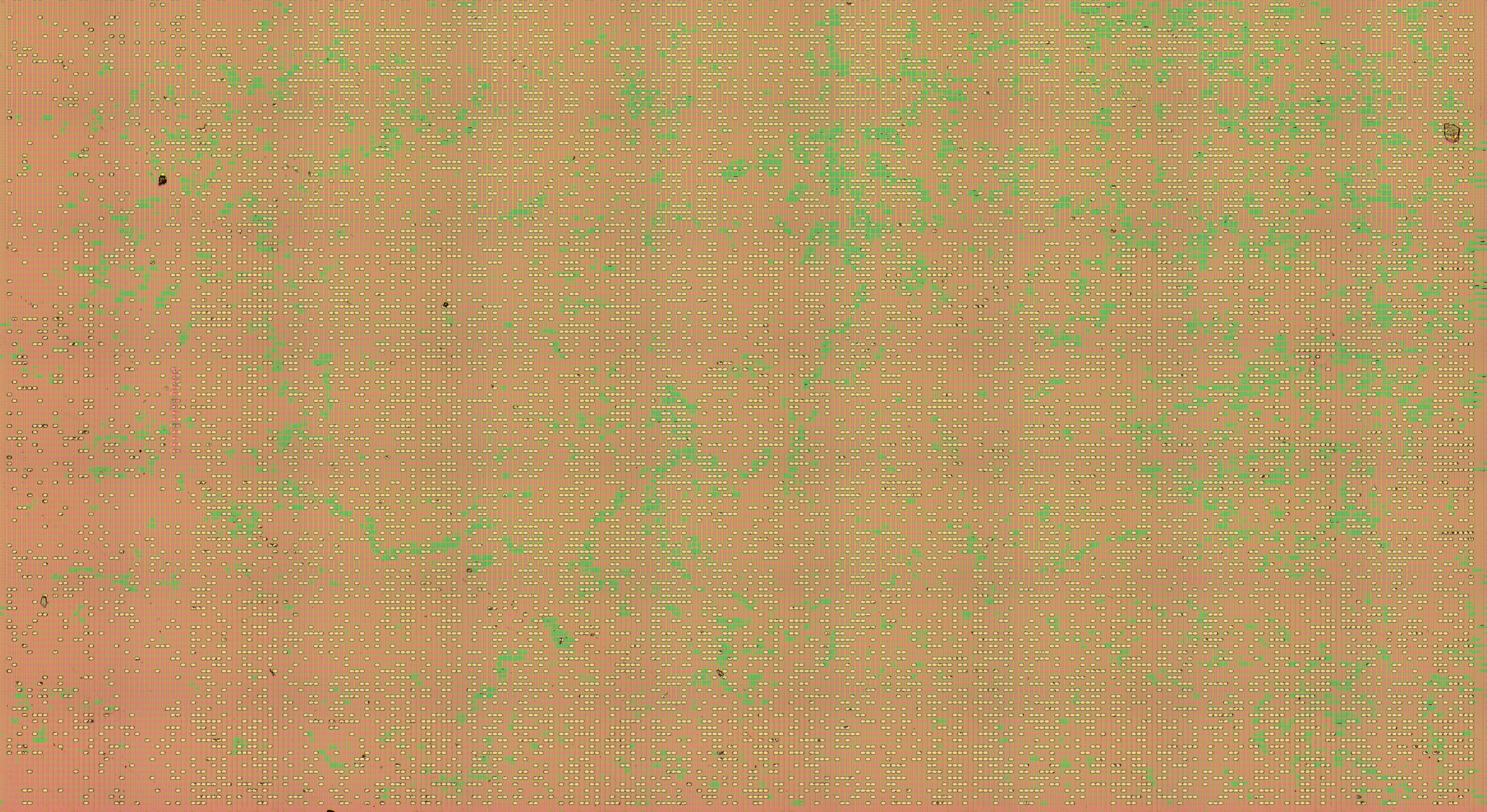

ROM array with top metal removed

raw ROM dump

ROM dump

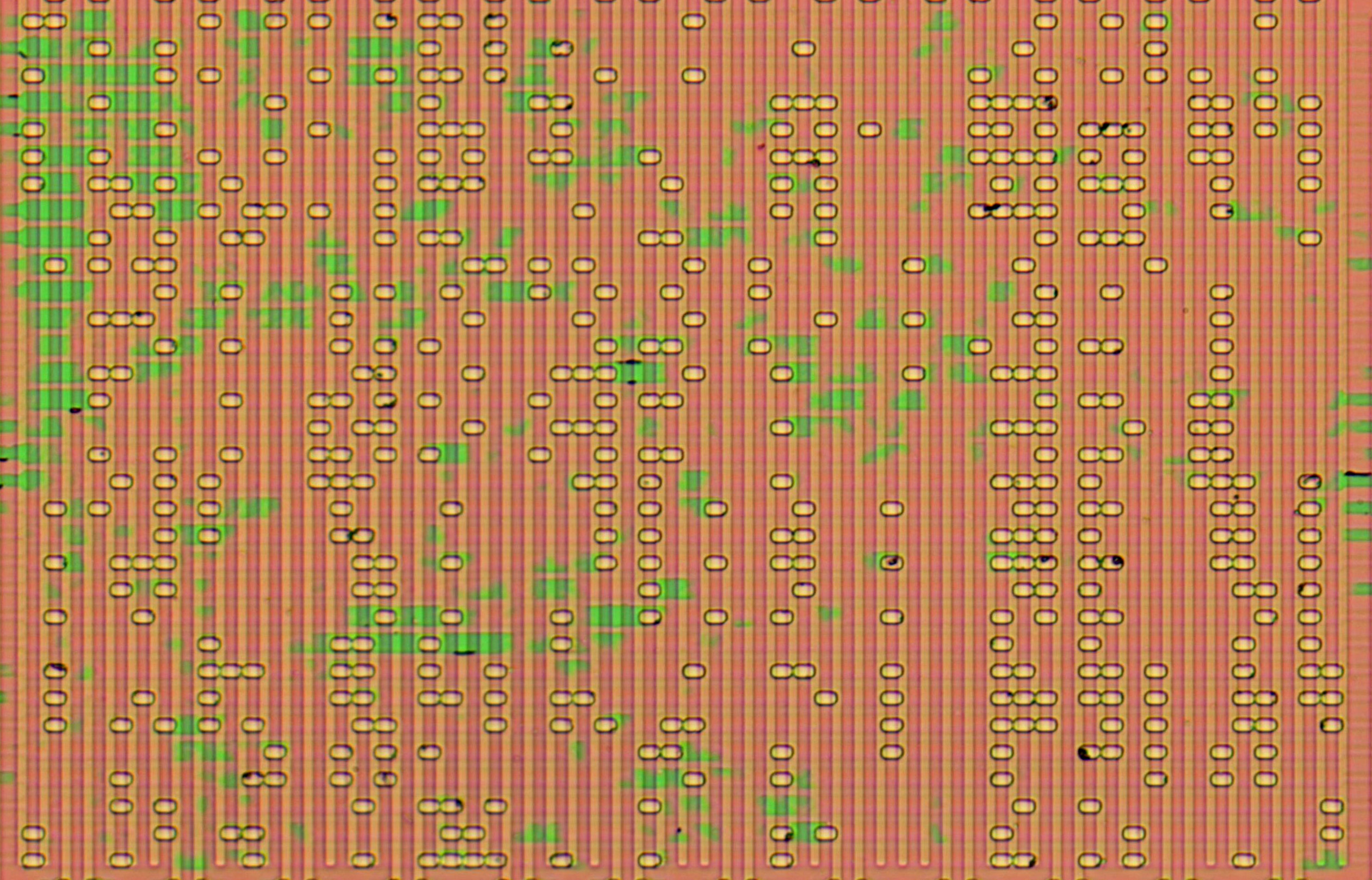

melody ROM array with top metal removed

Melody raw ROM dump

Melody ROM dump

        K1         K2          K3        K4
S1     left        up         off      sound
S2    right       down       pause       on
S3      --         --          --       fire
